Description

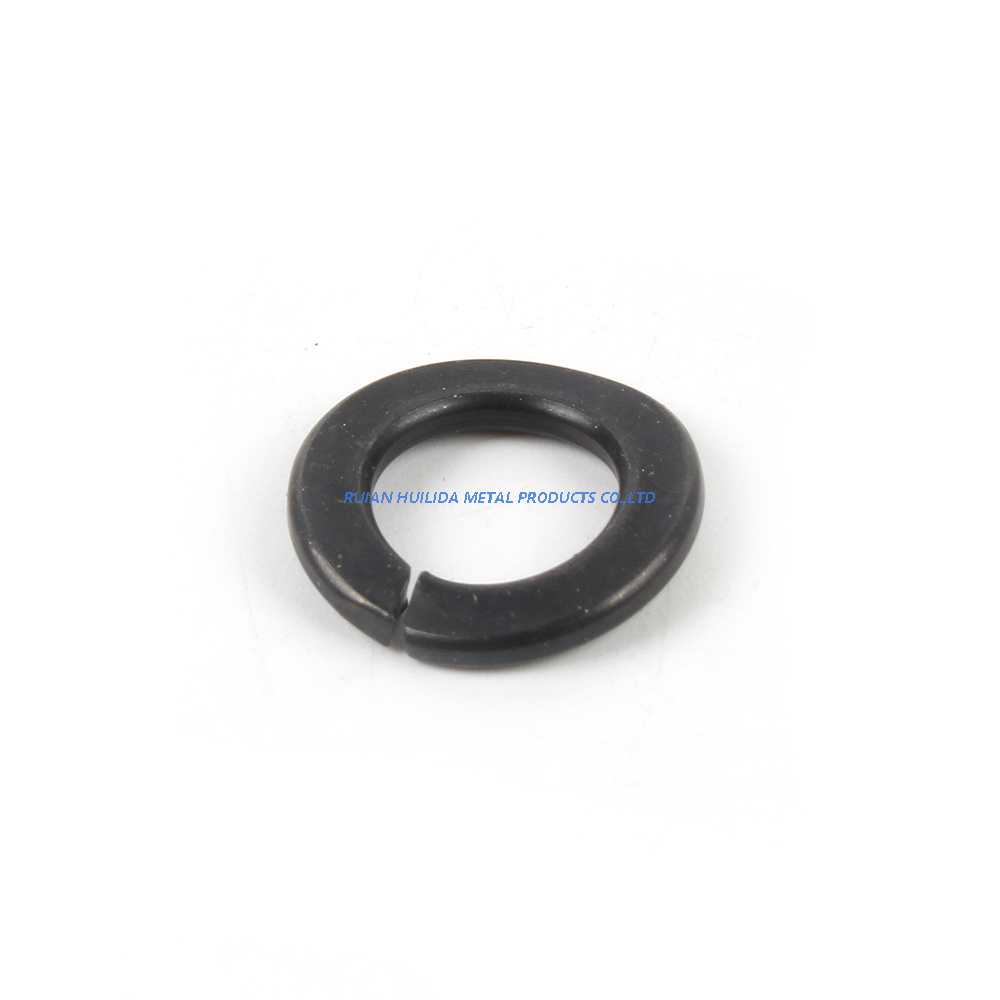

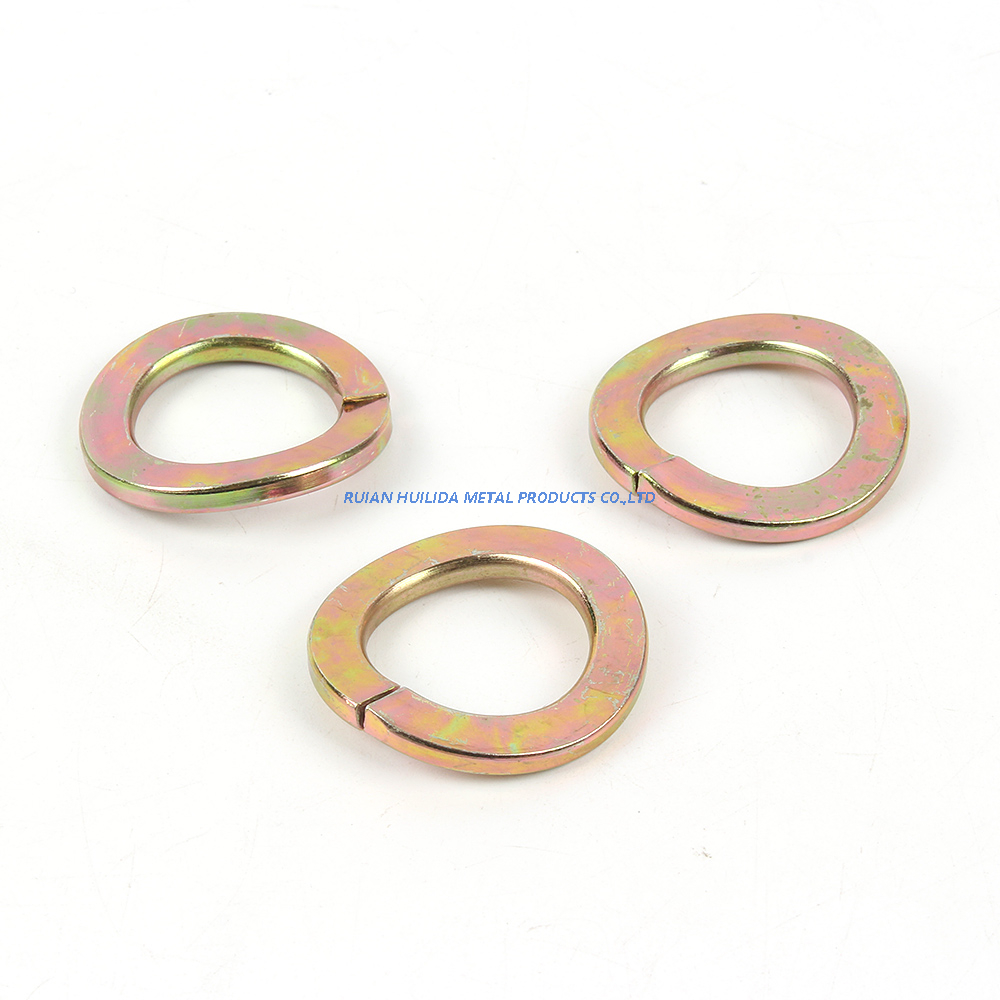

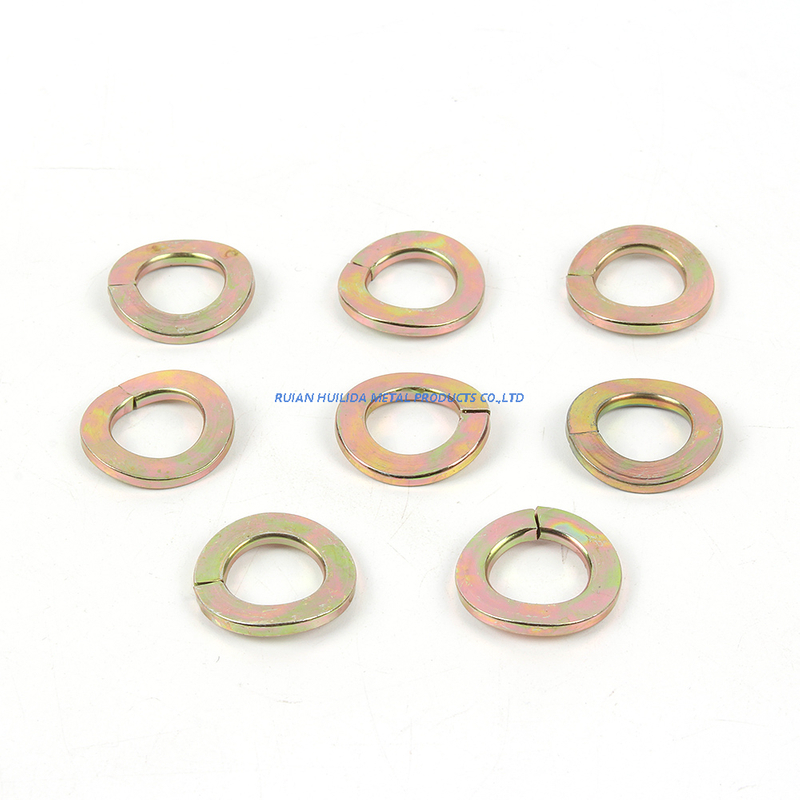

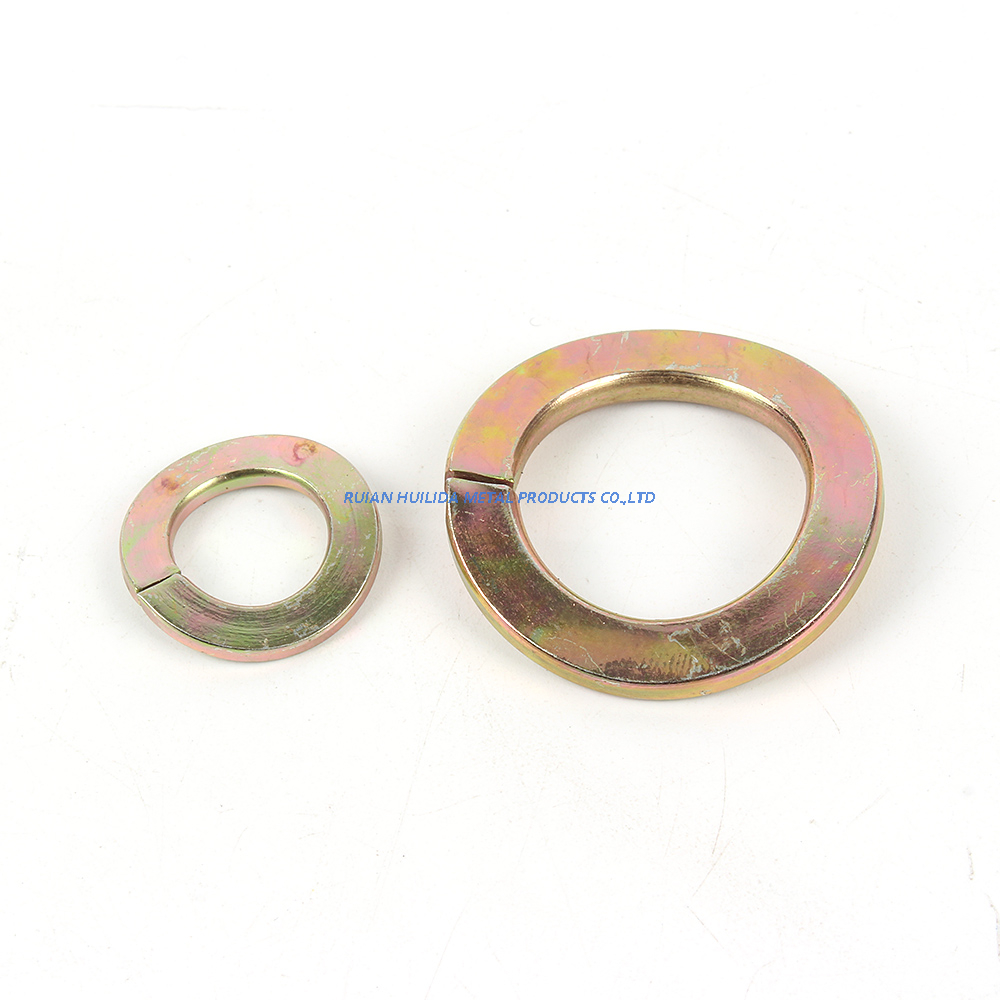

Curved spring washers
are typically used to absorb axial end play. The relatively light loads provided are approximately linear between 10% and 80% of the available deflection. Standard parts are made of unplated carbon steel and stainless steel. Parts are supplied deburred and kits are removed. Surface finishes on both steel and stainless steel parts are simple.
Specification
| Product Name |
Curved Spring Lock Washer |
| Place of Origin |
China |
| Brand Name |
Huilida |
| Standard |
DIN128A/B,ASME 18.21.1,JIS1251 |
| Material |
Carbon steel, stainless steel (A2, A4) Ect |
| Size |
M3 up to M36 |
| Treatment |
Zinc plated |
| OEM Service |
Accepted |
| Sample Delivery |
Within 7 working days |
Curved Spring Washer DIN128A/B：
Size:M3-M36
Material:carbon spring steel,stainless steel
Surface:zinc plating,black photosphate,HDG,Mechanical gal
Hardness:HRC40-46
Advantages
Available in spring steel and stainless steel
Typically used to absorb axial end play
Provides uniform spring stiffness and load distribution
Can be repeated for general applications
Ensures unloading height is within tolerance for more precise applications
If your company needs curved spring washers, sometimes referred to as conical disc springs, conical spring washers, disc springs or cup spring washers, contact Huilid today. we work hard to ensure that we produce quality products that meet our customers' specifications and standards. Our commitment is to each and every customer, and our goal is to have those customers come back for quality bent washers and all other types of springs.
